CG 84

PETROL GARDEN TRACTOR

Suggested working area: 8000 ㎡
Cutting method: Collector
Cutting width: 84 cm
Cutting height: 7 cutting heights ranging from 25-80mm
Transmission: Manual with 5 forward and 1 reverse gear

Original price was: £2,100.00.Current price is: £1,899.99.

15 in stock

VAT INCLUDED

Description

The Club Garden CG 84 ride-on lawn mower is small enough to fit through a standard garden gate but big enough to tackle any grassy area up to one acre in size.

The powerful 352cc STIGA ST 350 engine, manual transmission, and impressive 84cm cutting width make light work of larger areas. The twin-bladed cutting deck with two asynchronous blades and 7 cutting heights ranging from 25-80mm, produce a fantastic finish.

Grass clippings are collected in the 200-litre rear-mounted collector that can be emptied without leaving the comfort of the raised driving seat. When fitted with the optional mulching plug, (available separately), the grass clippings are finely cut into a nitrogen rich mulch to recycle back onto your lawn as a natural fertiliser.

Troubleshooting tips and a small demonstration.

Alistair of The Mower Shack in Halesowen, Birmingham showing some key features and a small demonstration of our new CG 84.

Steel Blades

Come with 2 cutting blades which makes it perfectly suitable for large surfaces

Robust Steel Deck

Mounts a mulching cutting system as standard.98 cm cutting deck width.

The cutting deck on the riding-on mower is tilting:

it adapts easily to the undulations of the ground

Mechanical Transaxel - Langhui

Mechanical 5 forward + 1 reverse gear shifting system.

Rear wheel drive.

Electomagnetic Clutch

Electromagnetic blade engagement with yellow button placed on the right side of the steering column.

Front wheel size
13x5.00-6
Rear wheel size
18x8.50-8

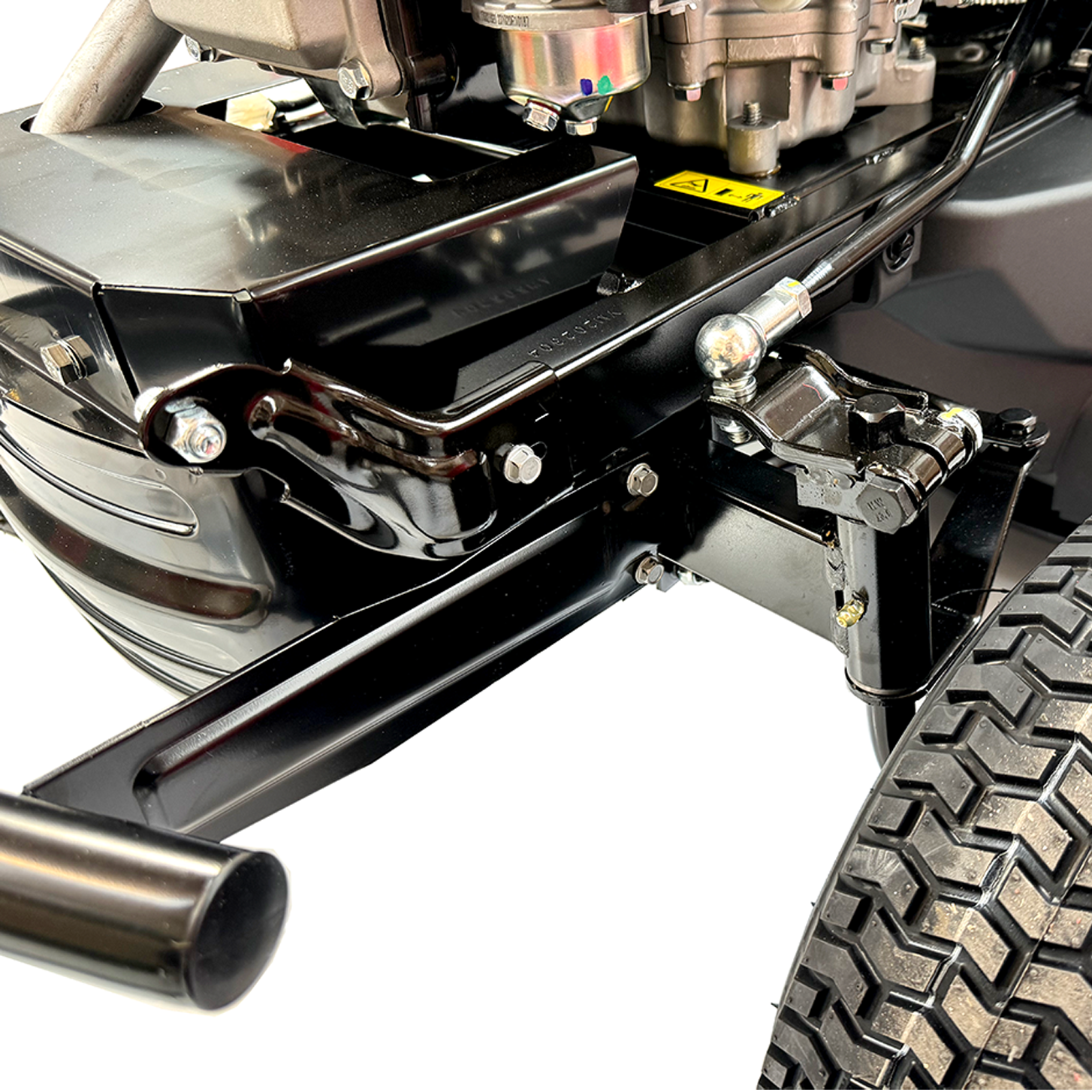

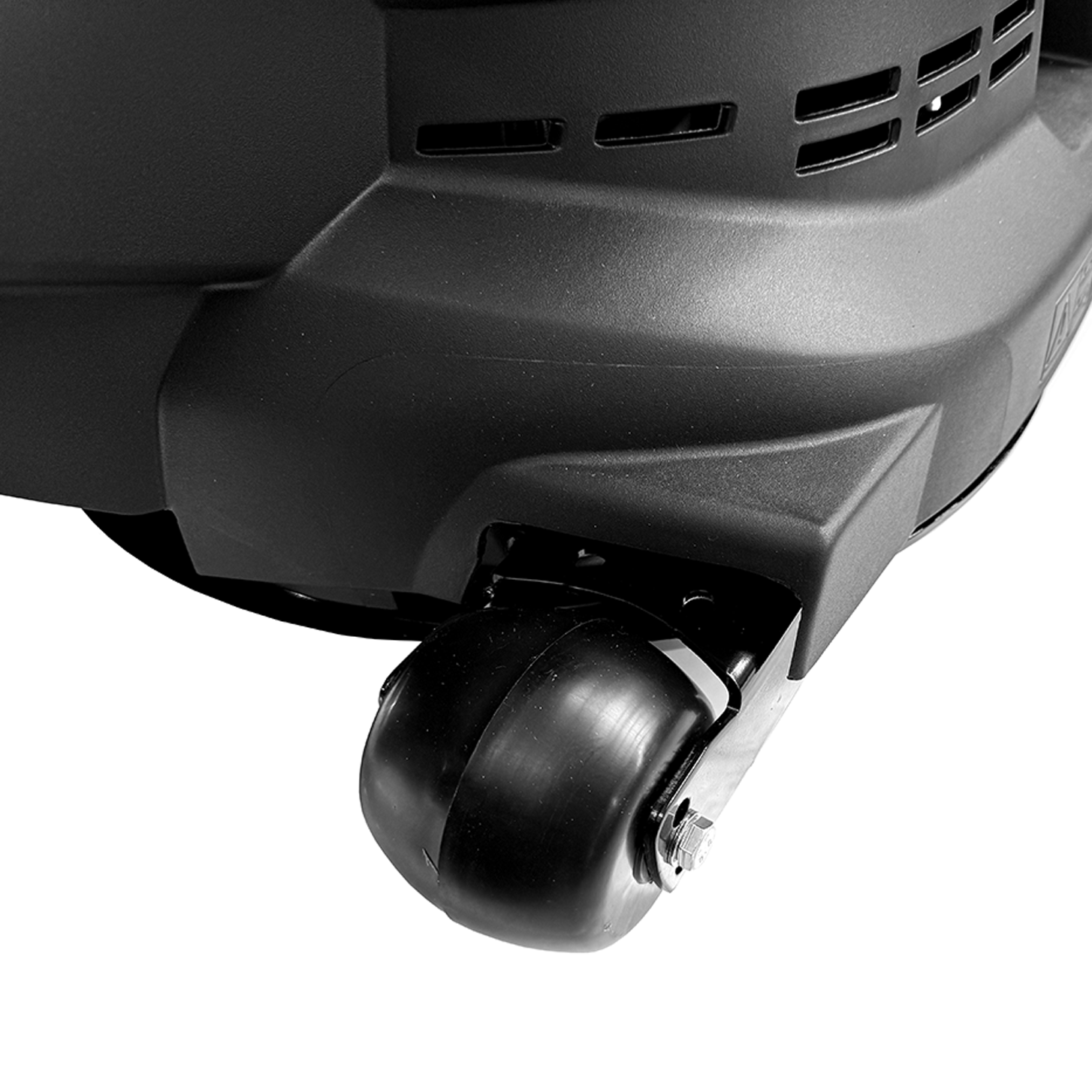

Anti-Scalp Wheels

The cutting deck is equipped with 2 non-marking wheels.

Cutting And Driving System

The 84cm cutting width twin bladed deck makes light work of large areas and there are 7 cutting heights to choose ranging from 25-80mm to produce the perfect cut everytime.

Grass clippings are collected in the 200-litre rear-mounted collector that can be emptied without leaving the comfort of the raised driving seat. When fitted with the optional mulching plug, (available separately), the grass clippings are finely cut into a nitrogen rich mulch to recycle back onto your lawn as a natural fertiliser.

Anti-Slip Footboard

Steering Wheel

Its light-touch steering and tight 140cm turning-radius make it highly manoeuvrable and fun to drive.

Seat

The seat features a safety switch which always cuts out the engine if the driver dismounts the machine..

Height Adjustment

With seven-step cutting-height (25 – 80mm) to ensure you’ll be able to adapt the both the terrain and conditions you’re faced with on any given day

Air Intake Grill

Engine cooling when tackling lawns up to 2 acres in size

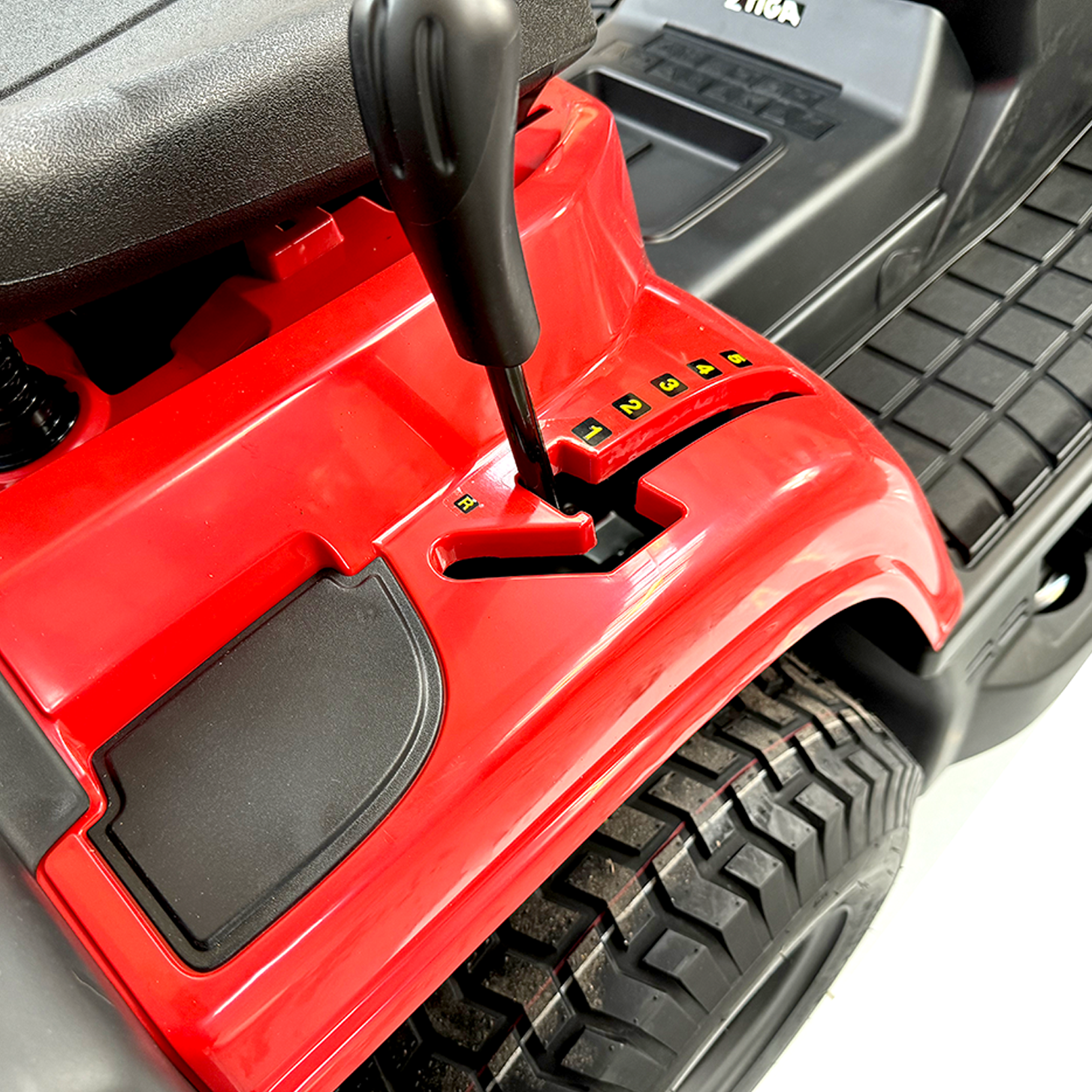

Manual Transmission

5 forward gears and 1 reverse gear

Grass Collector

200-litre rear-mounted collector

Comfort / Design

Hosepipe

A deck-mounted hosepipe fixture means rotten, corrosive clippings can be removed from the undercarriage without fuss

Height Adjustment

With seven-step cutting-height (25 – 80mm) to ensure you’ll be able to adapt the both the terrain and conditions you’re faced with on any given day.

  • Seven preset heights-of-cut, adjustable by way of a convenient spring-assisted lever
  • Six-speed manual drive provides a ground-speed for every eventuality
  • Tight 140cm turning-radius makes obstacle negotiation a breeze
  • Light-touch steering and adjustable high-back seat make for a comfortable drive
  • Deck-wash port for hassle-free cleaning of the deck’s underside
  • Large-diameter drive-wheels aid manoeuvrability and help prevent turf-damage



Grass Collection

200-litre rear-mounted collector

Displacement
352 cm³
Oil
Engine capacity 0.8L
OHV
352cc OHV single cylinder
Air Filter
Engine Brand
STIGA
Engine model
ST 350 OHV
Power
6.5 kW
Power source
Petrol
Displacement
352 cm³
Engine rotation speed
2800 rpm
Choke
Manual
Engine cooling
Air

Wanda Wheels

EXCELLENT GRIP & PROTECTION

Lightweight but have strong grip and traction on various surfaces, which provides quicker acceleration and braking to improve your safety. The superior grip provides optimal control when driving on mud, snow, sand, wet roads, loose gravel, or uneven terrain, which gives a safer driving experience and ensures consistent performance.

PREMIUM QUALITY

Tyres hold an E-mark ensuring that our gear has complied with European regulations. It ensures that each component meets safety, reliability, and excellence requirements.

RELIABLE PERFORMANCE

The wheel tyre is built to withstand the rigours of everyday driving and road conditions. It has a durable construction, and high-quality materials make it resistant to wear and tear, ensuring reliable performance over an extended period.

General Information

EAN/UPC
8008984808225

SKU
2T2000463/18



Width
880mm

Height
1100mm

Length
2338 mm

Weight
174 kg

Guaranteed sound power level (LwA) – dB(A)
100

Measured sound pressure level at operator ear dB(A)
86

Max vibration on steering wheels (m/s2)
6.37

Max vibration on driver’s seat (m/s2)
1.06

Measured sound power level dB(A)
99
